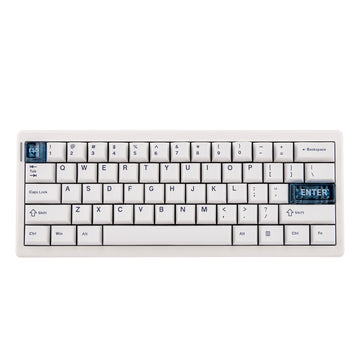

CIDOO QK61 V2
60% Gasket VIA Programmable Wired&Wireless Mechanical Keyboard
- 60% compact layout
- VIA Programmable & Hot-swappable
- Tri-Mode Connectivity: Bluetooth,2.4GHz, Type-C Wired
- Double Shot PBT with 2 Transparent PC Keycaps
- South-facing LEDs
CIDOO QK61 V2
PRODUCT INFORMATION
Product Feaftures
60% Gasket VIA Programmable Wired&Wireless Mechanical Keyboard
- 60% compact layout
- VIA Programmable & Hot-swappable
- Tri-Mode Connectivity: Bluetooth,2.4GHz, Type-C Wired
- Double Shot PBT with 2 Transparent PC Keycaps
- South-facing LEDs
60% Compact Layout
The CIDOO QK61 V2 features a 60% compact layout, perfect for portability and convenience. This layout omits the numpad,arrow keys, and function row, making it ideal for business trips or on-the-go use. Despite the absence of these keys, the QK61 V2 compensates with efficient shortcuts, ensuring you have all necessary functions at your fingertips.
VIA Programmable
Enhance your compact keyboard experience with VIA programmability. The QK61 V2, despite its compact size, offers powerful customization options through the VIA software. With VIA, you can remap keys, create macros, and manage backlighting settings, tailoring the keyboard to your specific needs and preferences.
Tri-Mode Connectivity with 3000mAh Battery
Designed with portability in mind, the QK61 V2 offers wired, 2.4GHz wireless, and Bluetooth connectivity. Switching between different modes is effortless with a switch located next to the USB port. The 3000mAh battery ensures long-lasting performance, reducing the need for frequent charging and enhancing your mobile experience.
Thoccy-Poppy Typing Experience
The CIDOO QK61 V2 is engineered for an enjoyable typing experience. With five layers of sound-improving materials, including sandwich foam, PET sound-improving film, IXPE switch pad,bottom foam, and silicone pad, the QK61 V2 delivers a satisfying thocky yet poppy typing feel. Thesematerials eliminate unwanted noise, making typing both fun and satisfying.
PC Plate and Gasket Structure
Featuring a polycarbonate (PC) plate, the QK61 V2 provides a flexible and deep-sounding typing experience. Unlike aluminum or steel plates, the PC plate enhances the thocky, poppy sound profile, providing a less harsh bottom-out experience when typing. The gasket mount isolates the switches from the case, offering vibration dampening and sound reduction. Combined with finely tuned plate mount stabilizers, the QK61 V2 ensures long typing sessions are comfortable and fatigue-free.
Hotswappable PCB Compatible with 3-Pin/5-Pin Switches
The QK61 V2 includes a hotswappable PCB, allowing you to easily swap out your favorite switches. Compatible with most 3-pin and 5-pin mechanical switches, including Cherry, Gateron, Otemu,Kailh, and MX clones, the QK61 V2 comes standard with CIDOO Pearl White Linear Switches. These pre-lubed switches, with a 40g actuation force, are perfect for both typing and gaming.
Cherry Profile Double Shot PBT Keycaps with Transparent PC Keycaps
The QK61 V2 comes with Cherry profile double shot PBT keycaps, known for their durability and oil resistance. Additionally, two transparent PC keycaps add a fun touch to the keyboard's minimalist aesthetic.
South-Facing LEDs
The south-facing LED design allows light to shine through the bottom of the keycaps, creating a vibrant and uniform backlighting effect. This design enhances the overall appearance of the keyboard, making it visually appealing in any setup.
Specifications for Custom Switch
Type: Linear
Pin: 5pin
Upper Housing Material: PC
Bottom Housing Material: Pa66
Stem Material: POM
Stem Length: 13.44mm
Spring Length: 21mm
Actuation Force: 40g ± 5g
Actuation Travel: 2 ± 0.3mm
Bottom-out Force: 45g ± 5g
Bottom-out Travel: 3.6 ± 0.2mm
Bottom out Force : 60gf Max
Lifespan: 50 million keystrokes
TECHNICAL DETAILS
- CIDOO QK61 V2 Keyboard
- USB Cable
- Keycap/Switch Puller
- Instruction Manual
- 2.4G Dongle
