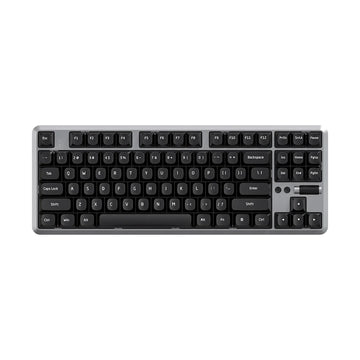

CIDOO F702 Flaretech

F702 Flaretech Mechanical Keyboard DIY Kit (Keycaps not included)

  • IF Design Award: IF 2016 award-winning switch
  • Flaretech switch: an exclusive optical prism switch
  • World's fastest keyboard switch possible
  • Optical trigger has zero physical wear off
  • Prism conducted light source, 100% precision
Regular price $139.99
Sale price $139.99 Regular price
Unit price
Save
CIDOO F702 Flaretech

CIDOO F702 Flaretech

PRODUCT INFORMATION

Product Feaftures

F702 Flaretech Mechanical Keyboard DIY Kit (Keycaps not included)

  • IF Design Award: IF 2016 award-winning switch
  • Flaretech switch: an exclusive optical prism switch
  • World's fastest keyboard switch possible
  • Optical trigger has zero physical wear off
  • Prism conducted light source, 100% precision

Flaretech Mechanical Keyboard DIY Kit

The CIDOO F702 Keyboard DIY Kit makes use of Flaretech switch technology. This technology was designed specifically to help gamers get more accurate controls and quicker feedback. Because of this, Flaretech won the 2016 IF Industrial Design Award.

The fastest switch

The Flaretech Switch is an optical switch that provides analog input, making it faster than mechanical switches. It requires less driving force and has shorter key paths, allowing you to get the results you want quickly and easily.

Easy to use and Long Life

The switch doesn't need to be soldered onto the PCB - it's modular, so it can be changed easily and quickly, without affecting its performance. This modularity also helps to extend its service life and make it waterproof (IPX3 level). Moreover, Flaretech switches are able to withstand up to 100 million keystrokes.

Multiple Switch Options

Flaretech switches offer three options to replicate the tactile and auditory feedback of Cherry switches with the same color. This provides you with incredibly responsive switches that feel familiar.

Flaretech Blue

Clicky Switch

55G force

4.00mm travel

Flaretech Red

Linear Switch

55G force

4.00mm travel

Flaretech Black

Linear Switch

80G force

4.00mm travel

Magnificent LED Lightning

The switch uses a Surface Mount Technology LED, so it is installed on the Printed Circuit Board and not on the switch itself. The LED does not go through the center of the switch but instead, it is routed through a light tunnel on top of the switch. The LED is quite small, however, the brightness it produces is impressive.

TECHNICAL DETAILS

Keyboard Size
14.2" x 5.3" x 0.13"
Weight
29.2 oz
Layout
ANSI 87 Key Standard QWERTY
Switch
Flaretech Optical Switch (Red/Blue/Black)
Switch Life—span
80 — 100 Million
Noise Signal
0.03 ms
Switch Transmission Speed
0.01 ms
Keycap
Not Included
NKRO
Full N—Key Rollover
Polling Rate
1000 Hz
Backlit
16.8M colors RGB LED
Cable
5.2 ft detachable braided Type-C
Cable Wight
1.3 oz
Multimedia keys
Support with FN key
Operating System
Win XP/Vista/7/8/10
Inside the Box
  • 1 x F702 Flaretech DIY Kit
  • 1 x 1.58m Type-C Cable
  • 1 x set of Flaretech Switches (selected when purchased)
  • 1 x Bag with tools
  • 1 x User Manual
